How to Calculate Grab Hire Loads for West London Groundworks Jobs

Getting grab hire volume wrong on West London groundworks jobs means either paying for a second lorry you didn't budget for, or watching your crew stand around while you scramble for another collection. After thousands of muckaway jobs across Ealing, Hounslow, Hammersmith, and Acton, the calculation mistakes are always the same.

Here's how to calculate grab hire loads accurately before the lorry arrives, so your West London site keeps moving.

Why Grab Hire Volume Calculations Matter on West London Sites

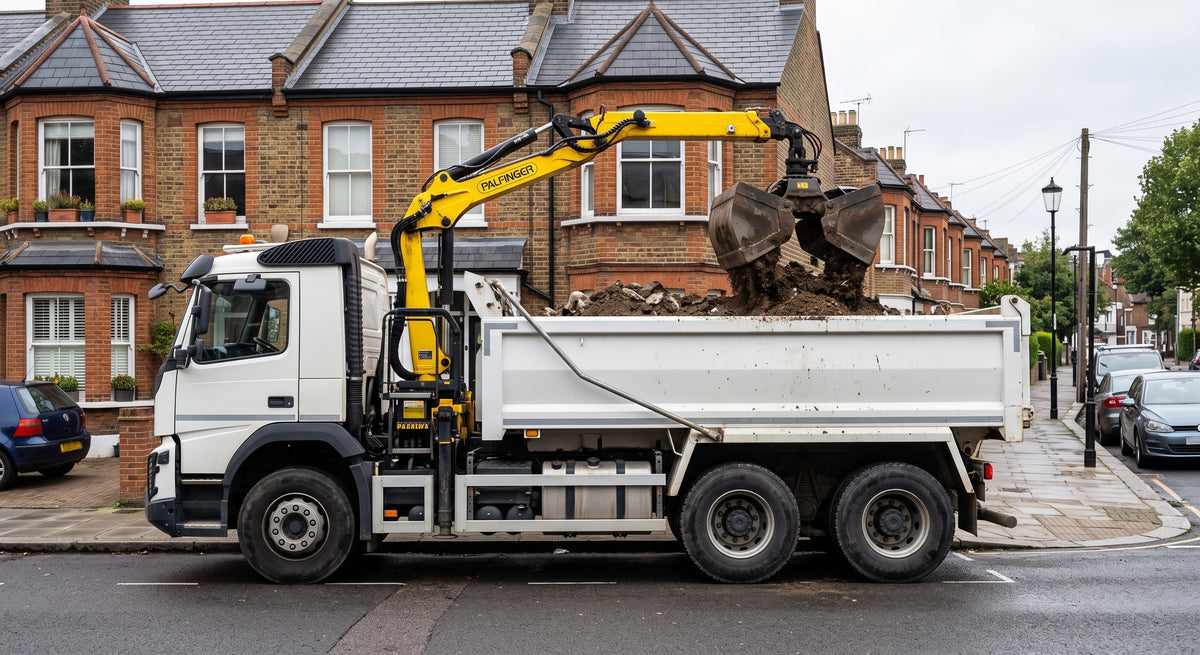

A standard grab lorry carries 12-16 cubic metres (roughly 15-20 tonnes depending on material density). Underestimate your volume and you're booking emergency collections at premium rates. Overestimate and you've paid for capacity you didn't use.

West London streets don't forgive planning mistakes. Narrow Victorian terraces in Acton, tight parking in Chiswick and Hammersmith - you get one lorry arrival slot. Make it count.

Grab hire pricing is typically per load, not per tonne, so knowing whether your dig needs one load or two changes your quote by 80-100%. The calculation takes five minutes. The cost of guessing wrong is a full day's delay.

Step 1: Measure Your Excavation or Material Pile Accurately

For excavation work (basement digs, foundation trenches, drainage runs), measure length, width, and depth in metres. Don't estimate, measure. A tape measure gives you real numbers, guessing gives you a 30% error margin.

For material already excavated and piled (hardcore from a demolition, soil from a dig), measure the pile's footprint and approximate height. Piles are irregular, so add 15-20% to your final volume to account for voids and uneven surfaces.

If you're clearing multiple smaller piles (rubble, spoil, broken concrete), measure each separately and total them. It's tedious but accurate.

Step 2: Calculate Volume Using Length × Width × Depth

The formula is straightforward: Length (m) × Width (m) × Depth (m) = Volume (cubic metres).

Example: a foundation trench measuring 8m long, 0.6m wide, and 1.2m deep = 8 × 0.6 × 1.2 = 5.76 cubic metres.

For multiple trenches or sections, calculate each and add them together. A typical rear extension dig might involve a main trench (5.76m³), a side trench (3.2m³), and a drainage run (1.8m³), totalling 10.76m³.

Round up, never down. Material compacts in the grab bucket differently than it sits in the ground. A 10.76m³ dig rounds to 11m³ for grab hire planning.

Step 3: Account for Material Swell (Soil Expands When Excavated)

Excavated soil occupies more volume above ground than it did compacted in the ground. This is called swell, and it catches contractors out every time.

Clay soils swell 35-40% after excavation. Your 10m³ trench becomes 13-14m³ of loose material. Sandy soils swell 25-30%. Hardcore and broken concrete swell 15-20%.

Apply swell factors to your calculated volume before comparing to grab lorry capacity. That 11m³ foundation dig in London clay becomes 11 × 1.35 = 14.85m³, call it 15m³. One grab lorry handles it comfortably.

Ignore swell and you'll underestimate by a third. That's the difference between one lorry and two.

Step 4: Check Grab Lorry Capacity for Your Material Type

Standard 6-wheeler grab lorries carry 12-16 cubic metres by volume, but weight limits matter too. A lorry maxes out at 15-20 tonnes gross vehicle weight.

Heavy materials (wet clay, concrete, hardcore) hit weight limits before volume limits. Light materials (dry topsoil, green waste) fill the lorry by volume first.

Clay soil weighs roughly 1.6-1.9 tonnes per cubic metre. A 15m³ pile of wet clay weighs 24-28 tonnes, which means you need two lorries even though the volume suggests one. Topsoil weighs 1.0-1.2 tonnes per cubic metre, so 15m³ = 15-18 tonnes, fitting one lorry comfortably.

Check your material type and density before booking. If you're unsure, call it heavy and plan for two lorries. Better to send one back than delay your groundworks waiting for a second collection.

Step 5: Plan Lorry Access and Pile Positioning Before Digging

Grab lorries need 3-4 metres of clearance to position and extend the arm. The grab reaches roughly 6 metres from the kerb, but the closer your pile sits to the lorry, the faster and cleaner the load.

On West London residential streets (Ealing terraces, Hounslow semi-detached roads, Hammersmith Victorian conversions), access determines everything. Pile your spoil on the front driveway or kerbside, never in the rear garden unless you have side access wide enough for a mini digger to shuttle material to the street.

If your site has restricted access (narrow lane, parked cars, overhead cables), tell the grab hire supplier before booking. They'll send a smaller 4-wheeler with reduced capacity (8-10m³) but better manoeuvrability. Planning this upfront avoids the grab lorry turning up and leaving because it can't position safely.

For more detail on setting up your West London site for a grab hire collection, we've written a full guide covering positioning and access logistics across Ealing, Acton, Southall, and Hounslow.

Common Grab Hire Volume Mistakes on West London Groundworks Jobs

Measuring in feet and converting poorly. Measure in metres from the start. Tape measures show both, use the metric side. Feet-to-metres conversions introduce rounding errors that compound across multiple measurements.

Forgetting to add material from multiple digs. A rear extension, new drainage, and footing adjustments might each look small (3m³, 2m³, 4m³), but together they total 9m³, plus swell takes you over one lorry capacity. Measure everything, total it, then apply swell.

Assuming one lorry always fits 15 tonnes. Grab lorries are rated by gross vehicle weight, which includes the lorry itself (usually 8-10 tonnes). Net payload is 15-20 tonnes depending on the lorry. Wet clay or demolition rubble pushes weight limits fast.

Mixing material types without checking weight. Clean topsoil and hardcore rubble have different densities. Mixing them in one pile makes weight calculation harder. Keep heavy materials (concrete, clay) separate from light materials (topsoil, green waste) so you can calculate accurately.

These mistakes add up to the same outcome: standing on site at 7am explaining to your client why the groundworks are delayed because the grab lorry couldn't take it all.

When Grab Hire Stops Making Sense and You Need a Different Service

Grab hire works for bulk material you've already excavated and piled at the kerbside. It doesn't work if material is scattered across the site, mixed with rubble, or inaccessible to the grab arm.

For gradual accumulation (soil dug over several days, mixed waste from a stripout), skip hire makes more sense. The skip sits on site, your crew loads it as they go, and collection happens when full.

For enormous volumes (50+ tonnes from a large basement dig or full-site clearance), consider muckaway with tippers or a RoRo bin exchange service. The calculation method is the same, but the vehicle type and pricing structure change.

The choice between grab hire and skip hire comes down to timing, access, and how the material accumulates. We've written a full comparison for London contractors.
